StarGuide Mini

LED Fixture Monochrome

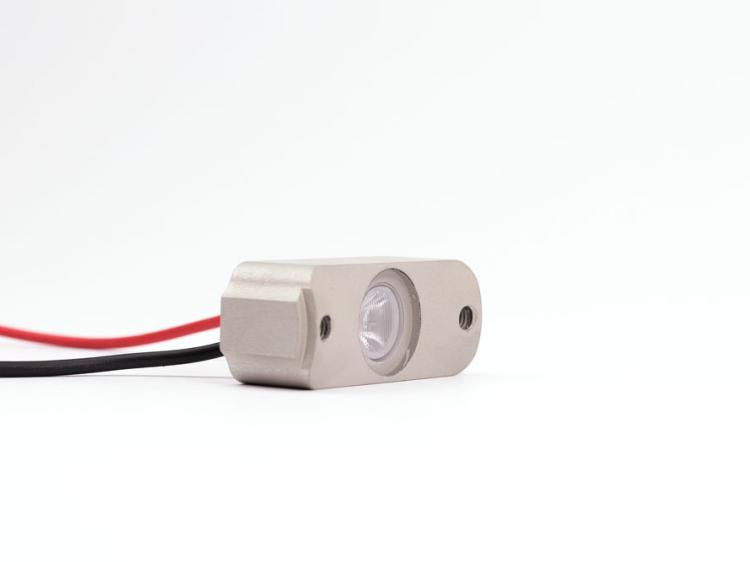

The StarGuide Mini is a compact led light unit for handrail applications. Our R&D department paid extra attention to its compact size, long lifetime and durability in order to have a “maintenance free product” with a very low ecological footprint. The modules can easily be installed with only a few tools.

The StarGuide Mini uses a current controlled power supply, and all modules are connected in series. Up to 100 modules can be connected in series, depending on the power supply used. The module is equipped with a ‘antifuse’, so in case of failure of one module in a series string, all other modules remain fully functional.

Related Products


StarGuide Maxi


StarLine

Productname

StarGuide Mini

Input voltage

constant current: 350mA

Power consumption

1,2W

Housing

Aluminum

Finish

Natural anodized

Available optics (FWHM)

15° / 24° / 31° / 43°x16°

Led color

White

Available color temperatures

2200K/3000K/4000K/6500K

Color rendering index

80

Ingress protection

IP67

Impact protection

IK10

Length

47mm

Height

13mm

Depth

18mm

Weight

25gr
